Preseason Planter Checklist

Something went wrong. Please try again later...

From planter singulation to seed furrow creation, use this preseason planter maintenance checklist to help prevent common seeding problems that result from improper setup, maintenance and operation.

Planter Frame

Hitch Height

Planter hitch
  • This planter hitch is too low
  • 7 x 7 toolbar is sloping downhill
  • Hitch height should be raised to level toolbar for best planter performance
Reminders:

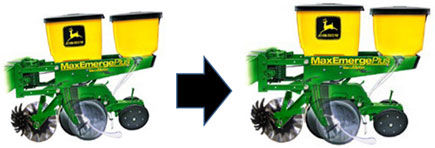

No-till coulters

Left Photo:

  • No-Till Coulters too deep
  • Keeton Seed Firmer down pressure lightened
  • Closing wheel down-pressure lightened

Right Photo:

  • Level your units in the field
  • Must be done in motion. Have someone help you watch your row unit
  • Front of seed box should be 1/2” higher than back of insecticide box

Correct Toolbar Height

Planter toolbar height
  • Bar height should be 20" - 22" from ground level
  • Provides correct down- pressure from springs
  • Allows row unit to run level in seedbed

Level Bar Across Entire Planter

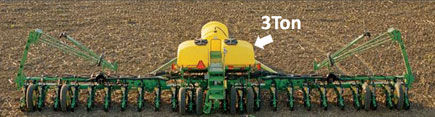

Planter - center frame weight

Stop and think how much weight is added to the center frame of this planter. Two 50-bushel seed tanks plus a 500-gallon fertilizer tank all riding on the center. Four tires pushing the center of the planter farther down into the tilled soil than the wings.

Planter bar height
  • On center weighted planters the center section may need to be adjusted to compensate for payload
  • Tillage practices affect bar height across large planters

Seed Transmission Systems

Planter transmission

How much vibration do you have in your drive system?

Check the following:

  • Clutch assembly
  • Bearings/sprockets/idlers
  • All chains

Note: Transmissions need to run smoothly. Any vibration in the drive system will end up at the meters and can cause spacing issues. Sprockets, chains, bearings, meter drives and insecticide drives all need to be checked.

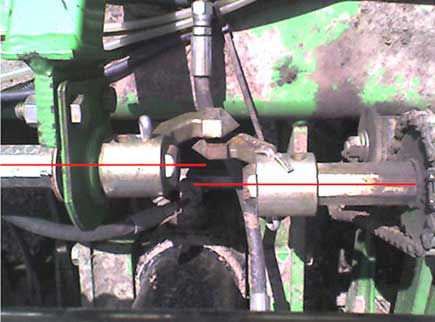

Check Shaft Alignment

Planter shaft alignment

Shafts must be aligned. If they are misaligned some row units may plant heavier or lighter populations than the main section of the planter.

Seed Furrow Creation

No-Till Coulters

No-till coulters

If using no-till coulters they need to be 1/4" above the openers.

  • Often running too deep
  • Should run 1/4" above Tru-Vee openers
  • If coulters are too deep:
    • seed will be planted too deep
    • openers won't turn

Row Cleaners

Set deep enough to remove trash and not throw soil. In some cases floating cleaners may help.

Floating vs. Fixed

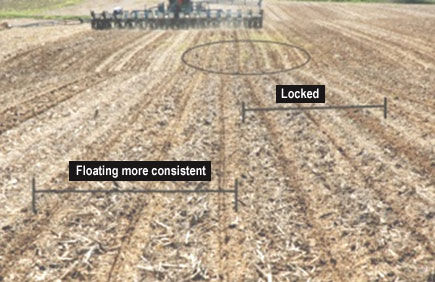

Floating row cleaners

Floating row cleaners follow contours and are less likely to "trench" or "hover."

Opening Disks

Opening disks
  • Check for wear and alignment.
  • Should form “V” trench, not “W."

JD Opening Disk

JD Opening Disks
  • Must replace if less than 14 1/2"
  • New blades are 15"



Disk Contact Adjustment

Disk contact adjustment
  • Should have between 1 1/2" to 2 1/2" of contact on blades
  • Kinze 3000 blades only need 1" of contact
  • Proper adjustment creates Tru-Vee trenches
CNH Planters

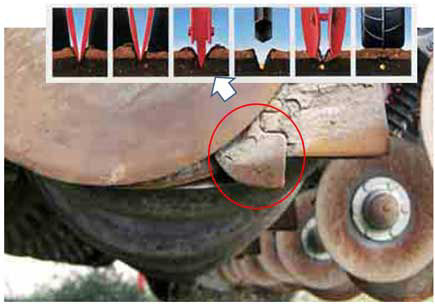

The firming point, shown in red circle below, should be replaced when opener disks are replaced.

Planter firming point

The firmer is designed to run in the bottom of the seed trench.

Seed Drop

Seed tube guards  Seed tube guards

Check seed tubes and seed tube guards for wear, bending or deformation.

Seed tube guards

Seed tube protector worn by contact with opener allows contact between disks and seed tube. Need to keep protectors in good repair to preserve seed tubes.

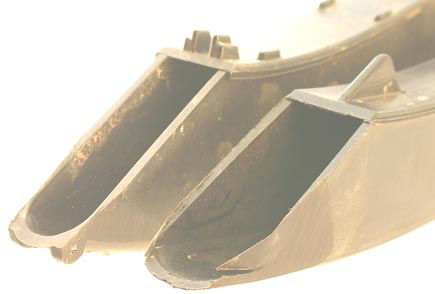

Bullseye seed tube, standard seed tube

Bullseye Tube with additional wear allowances (left). Standard Tube (right). Vibration or bounce of the row unit can cause tumbling and poor seed spacing.

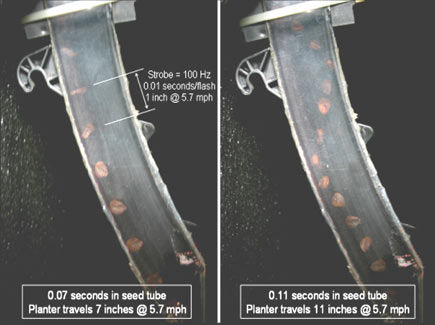

Seed tubes

Seed firmers are designed to push the seed to the bottom of the trench. In wet conditions, soil can build up on the firmers and actually move the seed along the trench.

Seed firmer
Seed firmer

Seed firmers help eliminate a gap between the seed and the bottom of the seed trench, helping create good seed-to-soil contact and uniform depth within the seed trench.

Photo - Planted seed in furrow.
Photo - Planted seed in furrow.
Gauge wheels - disk openers

Gauge wheels should slightly rub on the disk openers to help create a good seed trench sidewall and keep the openers clean.

Gauge wheels
Gauge wheels

Covering

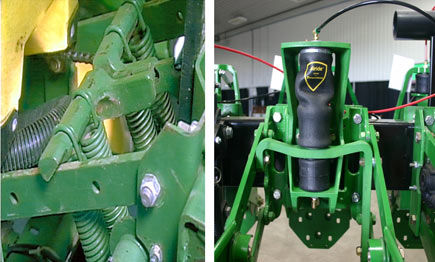

Mechanical and pneumatic systems

Mechanical (left) / Pneumatic (right)

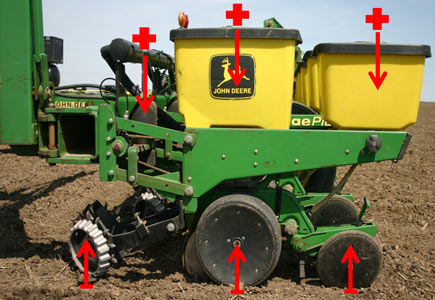

Opposing Forces

Planter side view

Too much down force creates sidewall compaction.

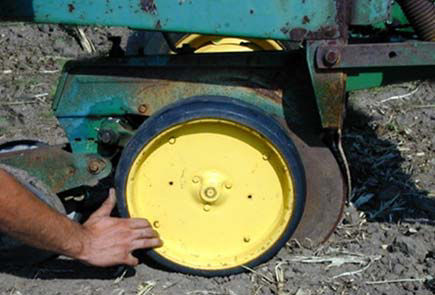

Photo - Gauge wheel spun by hand

Gauge wheels should take effort to spin by hand.

Photo - Closing wheels centered on row.

Closing wheels should be centered on the row.

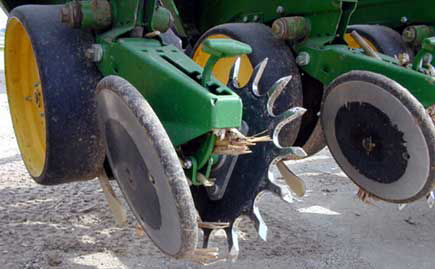

Spike closing wheels

In tougher wet soils, spike closing wheels may help prevent sidewall compaction.

Singulation

  • Check finger pickups for wear
  • Replace worn knock-off brushes
  • Replace worn finger pickups and check finger tension
  • Replace worn or grooved faceplates
  • Replace seed conveyers with missing ladders
  • Use graphite for lubrication

Check all types of vacuum systems for air leaks and worn seals around the metering units.

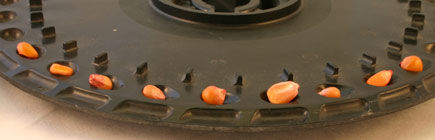

Cell Disk - John Deere Cell Disk
Cell disk
  • Seed size sensitive
  • Lower vacuum
Flat Disk - Precision Planting eSet
Flat disk
  • Seed size independent
  • Should have doubles eliminator
  • Higher vacuum

Flat disks are more forgiving of different seed sizes than cell disks. Note the different sizes of seed in the cell disk.

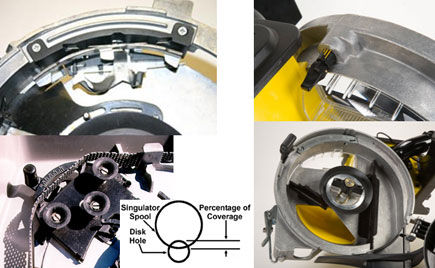

Doubles Eliminators
Doubles eliminators are used with flat disks. Shown are the Precision, Case and Deere singulators.

Doubles eliminators

Whole Planter

CCS Pressure Gauge

CCS Pressure Gauge

Agitator Shaft

Agitator Shaft

Small Seed Nozzle Insert

Small Seed Nozzle Insert

Mini-hopper

Mini-hopper

Central Fill Systems
Central Fill Systems
Central Fill Systems


Seed Bridging in Seed Tank


Symptoms:

  • No seed in mini hopper
  • Lots of air in mini hopper

Suggestions:

  1. Make sure tank pressure is set to the recommended setting
  2. Make sure tank agitator is turning when fan is running
  3. Make sure agitator pins are centered over seed nozzle openings
  4. Start adjusting tank pressure by 1 pound until seed begins to flow


Seed Plugging in Seed Hose


Symptoms:

  • Seed is stuck in seed delivery hose between tank and mini hopper
  • Seed stuck in elbow of mini hopper

Suggestions:

  1. Make sure tank pressure is set correctly for crop being planted
  2. Unplug agitator motor to allow less seed to be picked up
  3. For small seed use tank nozzle inserts

Seed Lubricants Reduce Problems

Proper use of talc and graphite may eliminate a lot of potential problems. Use rate may need to increase for large treated seed and when temperature and humidity are high.

Talc and Graphite

  • Talc removes static
  • Graphite lubricates

Increase use rates for heavily treated seed or when temperature and humidity are high.

Find use rates at Seed Corn Plantability Guide.




Refer to the individual planter manufacturer's manual for complete recommendations.
